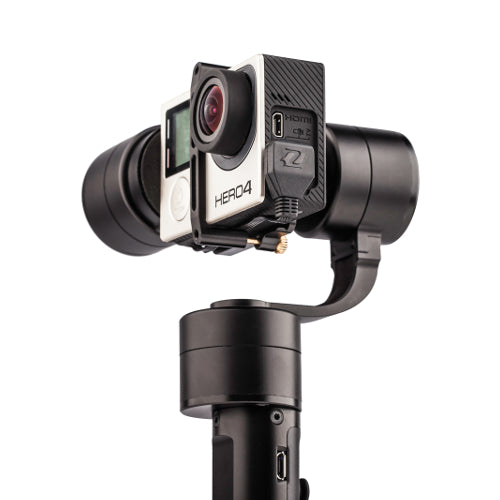

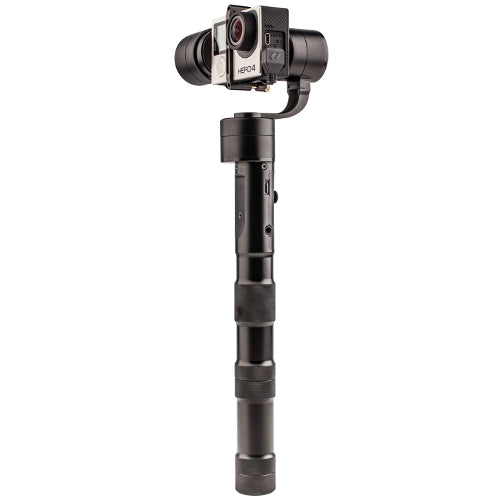

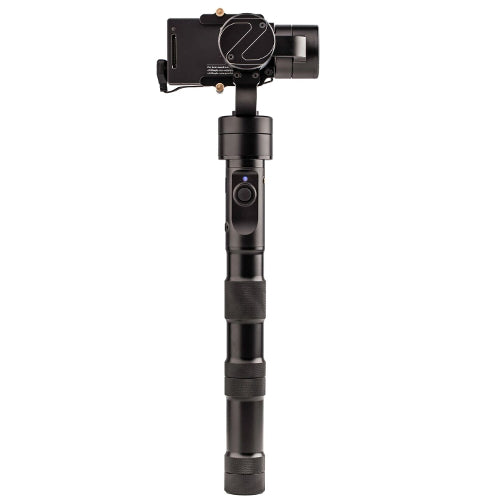

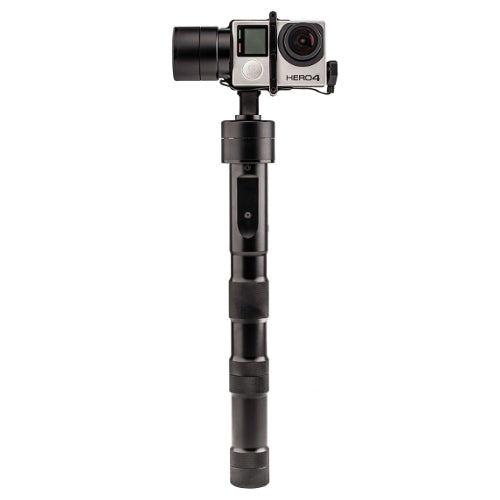

Zhiyun-Tech Evolution 3 Axis Handheld Gimbal Stabilizer for Go Pro - Jet Black

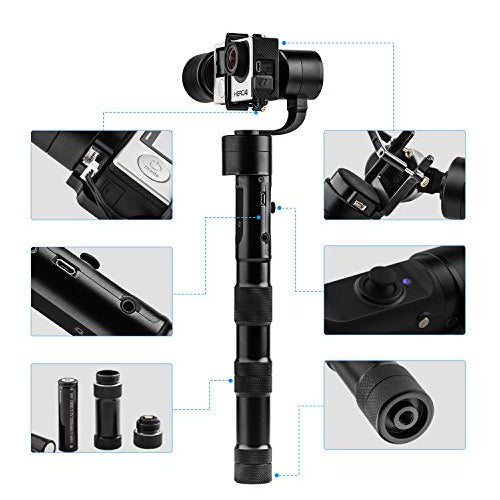

Features

• Three 32-Bit MCUs Running at 4000 Hz
• 5-Way Stepless Joystick
• Extension Tube for Extended Power

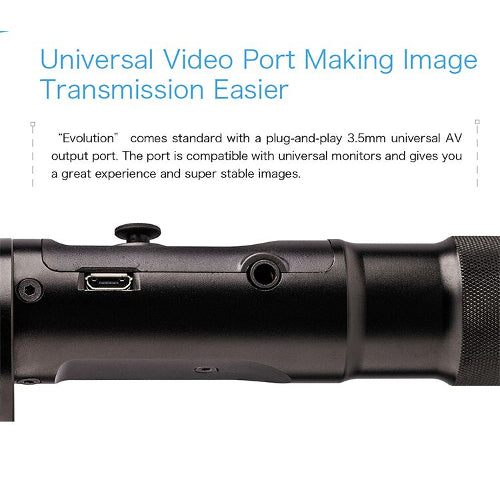

• 3.5mm Real-Time Monitoring Video Output
• Can Power Camera During Operation

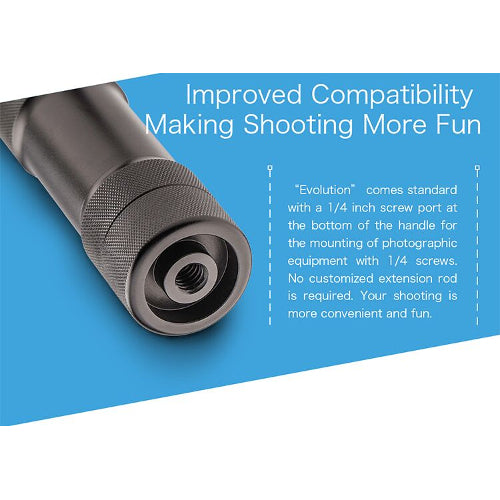

• 1/4"-20 Threaded Hole on the Bottom
• Two Batteries Included (12 Hours Total)

Specifications

Cameras Supported

• Max Size: 1.7 (H) x 1.2" (W) / 4.3 x 3 cm

Battery

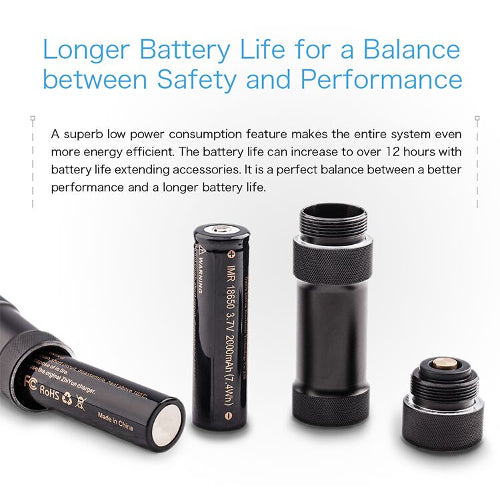

• Model 18650 (two included)
• 3.7 V, 2000 mAh, Li-ion

Input Voltage

• 6.8 - 12.6 V

Operating Current

• Minimum: 50 mA
• Standard: 80 mA
• Maximum: 3000 mA

Tracking Error Angle

• Static
• Minimum: ±0.01°
• Maximum: ±0.04°
• Dynamic
• Minimum: ±0.05°
• Standard: ±0.1°
• Maximum: ±0.3°

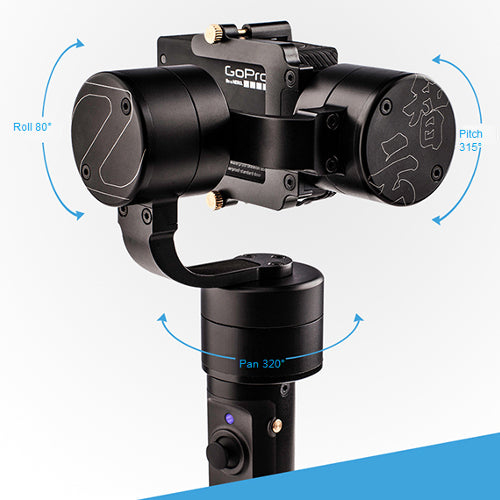

Rotation Range

• Pitch Axis Mechanical Movement Range
• Minimum: -185°
• Maximum: +130°
• Roll Axis Mechanical Movement Range
• Minimum: -4°
• Maximum: +40°
• Pan Axis Mechanical Movement Range (Vertical)
• Minimum: -160°
• Maximum: +160°
• Pan Axis Mechanical Movement Range (Horizontal)
• Minimum: -45°
• Maximum: +45°

Following Rate

• Pitch Axis Following Rate
• Minimum: 1°/s
• Maximum: 50°/s
• Pan Axis Following Rate
• Minimum: 1°/s
• Maximum: 80°/s

Battery Life

• Minimum: 11 hours
• Standard: 13 hours
• Maximum: 15 hours

Operation Temperature

• -4 to 122°F (-20 to 50°C)

Dimensions

• 10.9 x 4.3 x 4" (28 x 11 x 10 cm)

Weight

• Without Battery: 0.82 lb (371 g)

Packaging Info

• Package Weight 1.8 lb
• Box Dimensions (LxWxH) 11.6 x 5.2 x 2.0"
